In 2023, Zhendian Technology continued to deepen its expertise in the industrial bus industry, constantly innovating and bringing several influential products to market. Today, let's review these key products:

PART ONE: Slice I/O

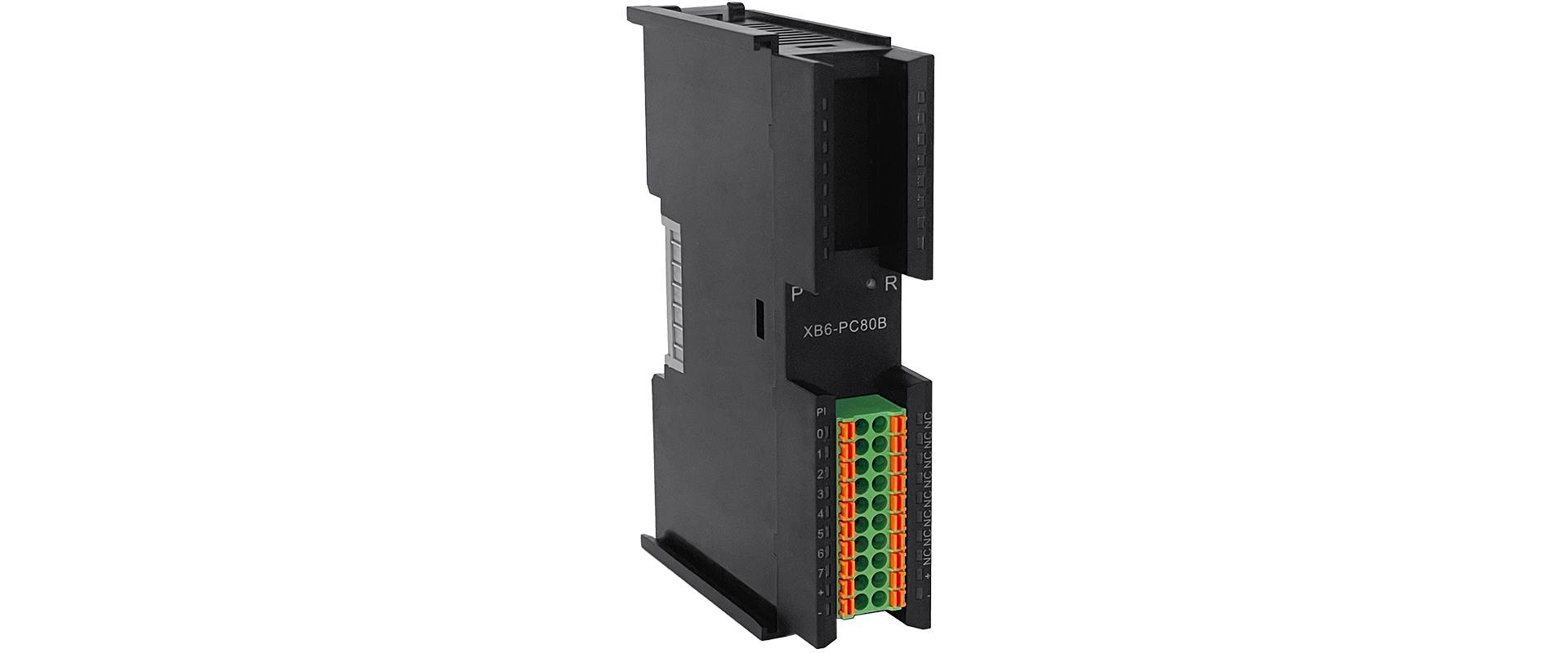

🔼 Multi-protocol slice pulse counter module:XB6-PC80B

[Product Introduction]

X-bus backplane bus, supporting EtherCAT and PROFINET bus protocols.

8-channel PNP type pulse input counting function; supports a maximum counting frequency of 600 Hz; supports reporting pulse count and real-time frequency; supports 8-channel pulse input.

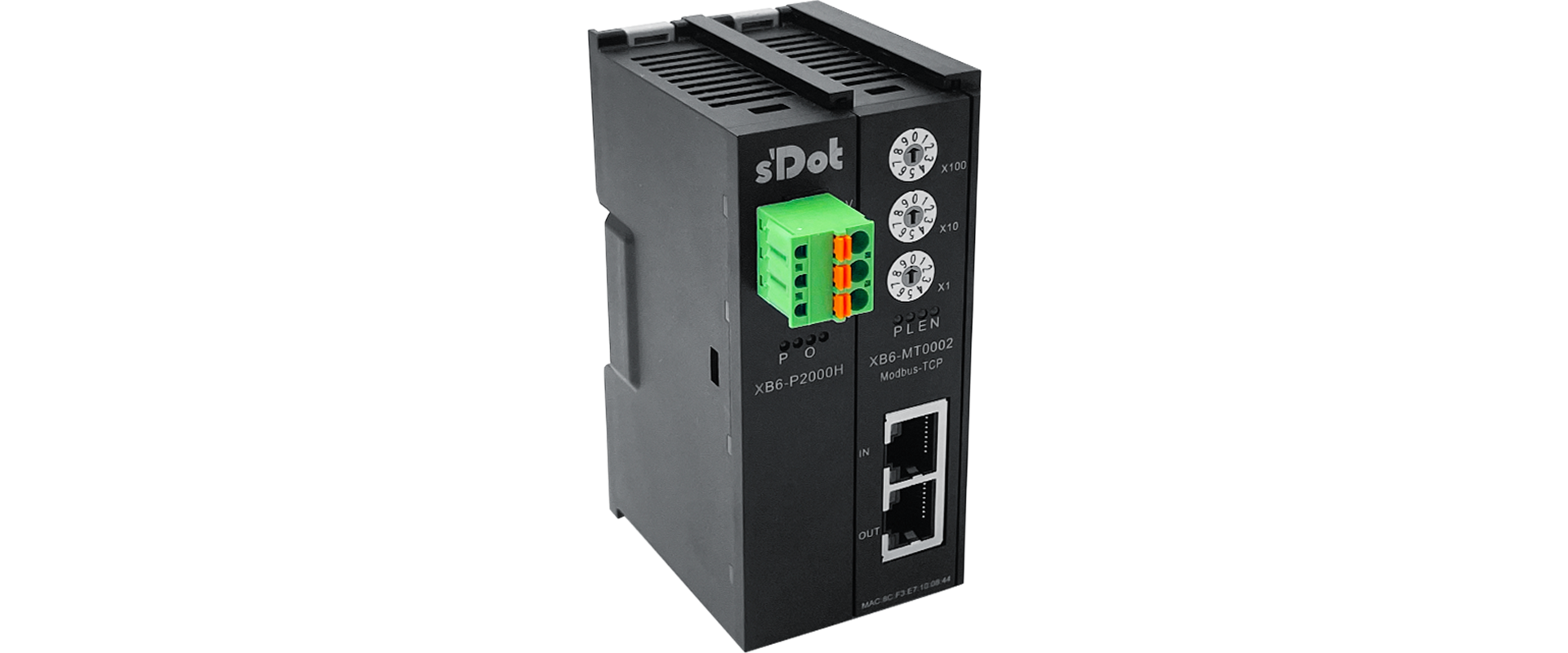

🔼 Slice coupler:XB6-MT2002ST

[Product Introduction]

High-speed X-bus backplane bus, supporting various I/O modules, including digital, analog, temperature, encoder, gateway, pulse, etc.

Supports large data volumes, with up to 1024 digital expansion points; supports function codes 01\02\03\04\05\15\16\23, compatible with various controller master stations.

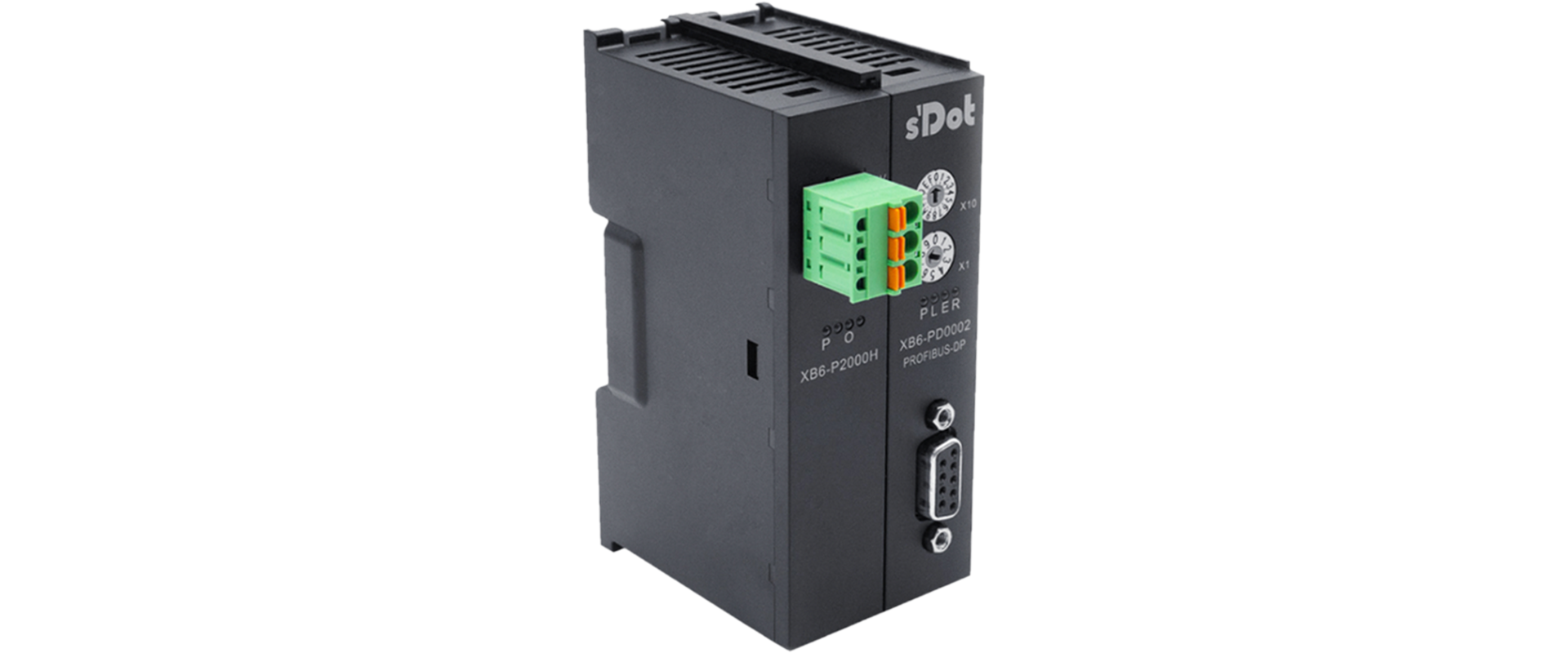

🔼 Slice coupler:XB6-PD2002ST

[Product Introduction]

High-speed X-bus backplane bus, supporting various I/O modules, including digital, analog, temperature, encoder, gateway, pulse, etc.

High-performance processing chip + dedicated ASIC; high-speed 12 Mbit/s communication rate with baud rate auto-detection; high-speed X-bus backplane bus.

PART TWO: Integrated I/O

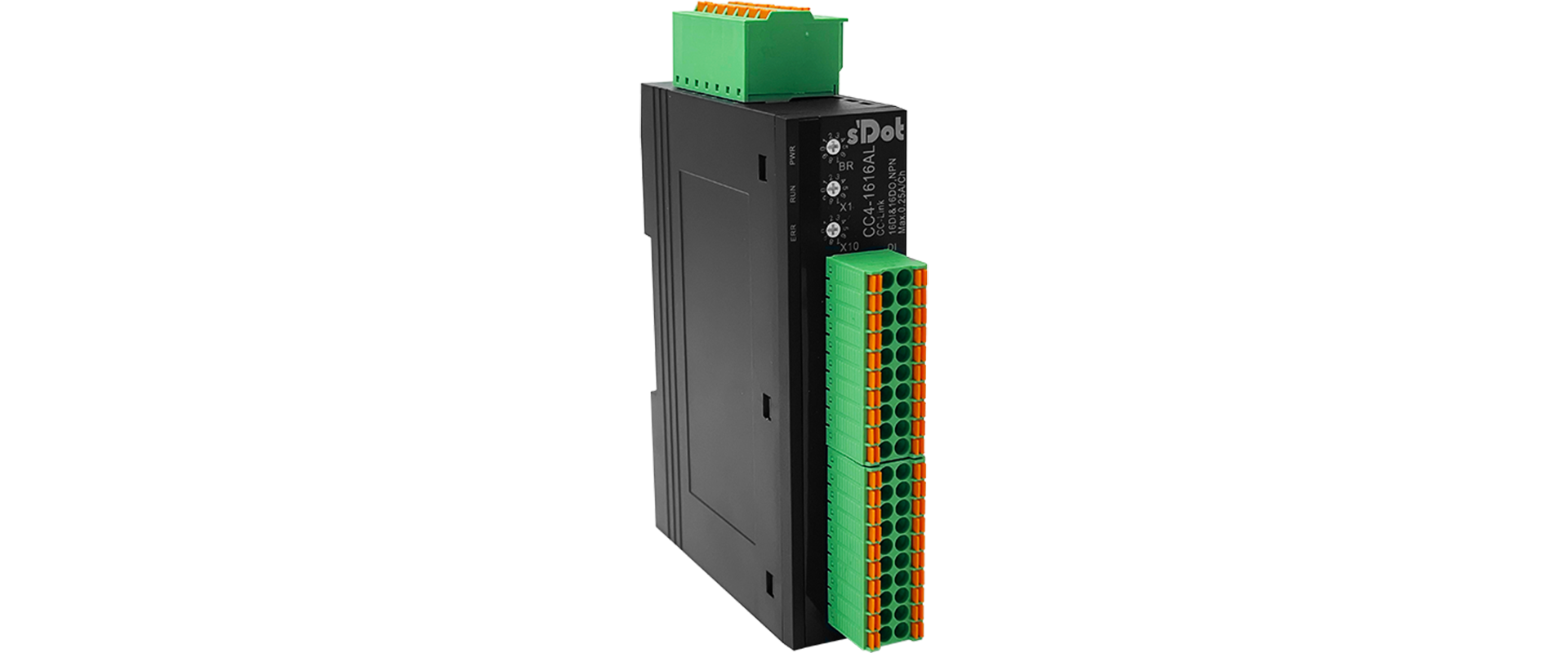

🔼 Integrated I/O Module: CC4-1616AL

[Product Introduction]

Vertical module supporting multiple I/O types, Digital, Analog, and various signal and point combinations, freely selectable according to the application scenario.

[Product Features]

Maximum communication rate of 10 M, with a wiring length of up to 100 m at the maximum rate

Simple configuration, supporting all major mainstream CC-Link master stations

Added a 1.5 ms Digital Input Delay version to filter out microsecond-level invalid signals on site

Compact structure that saves cabinet space, only 102 x 72 x 25 mm

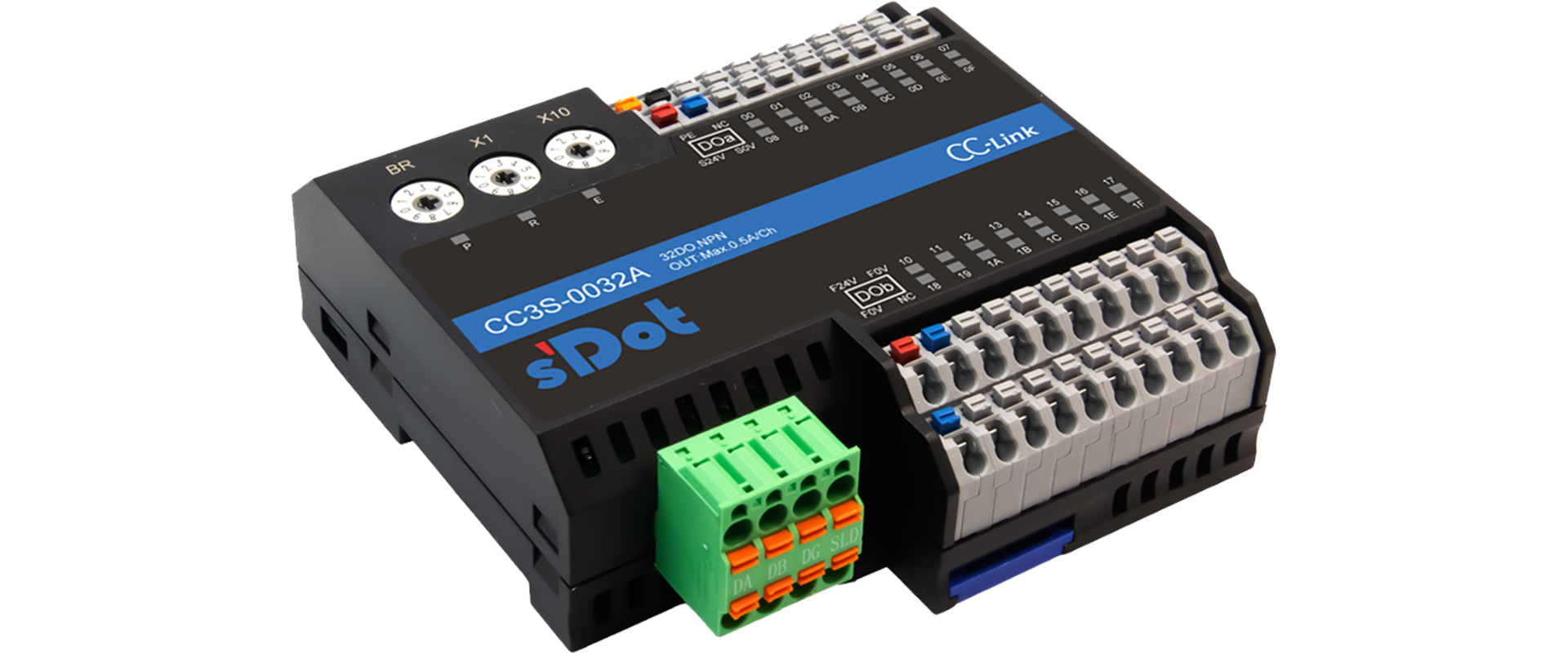

🔼 CC-Link Integrated I/O Module:CC3S-0032A

[Product Introduction]

Multiple Digital models available; inputs compatible with NPN/PNP signals for flexible configuration; upgraded to quick-plug terminals for convenient on-site wiring.

[Product Features]

Ultra-thin I/O module, only 32 mm high, saving cabinet space

Supports Digital Input Delay, with a 1.5 ms input delay version to filter out microsecond-level invalid signals on site

Simple configuration, supporting all major mainstream CC-Link master stations

Maximum communication rate of 10 M, with a wiring length of up to 100 m at the maximum rate

PART THREE: IP67 Bus I/O

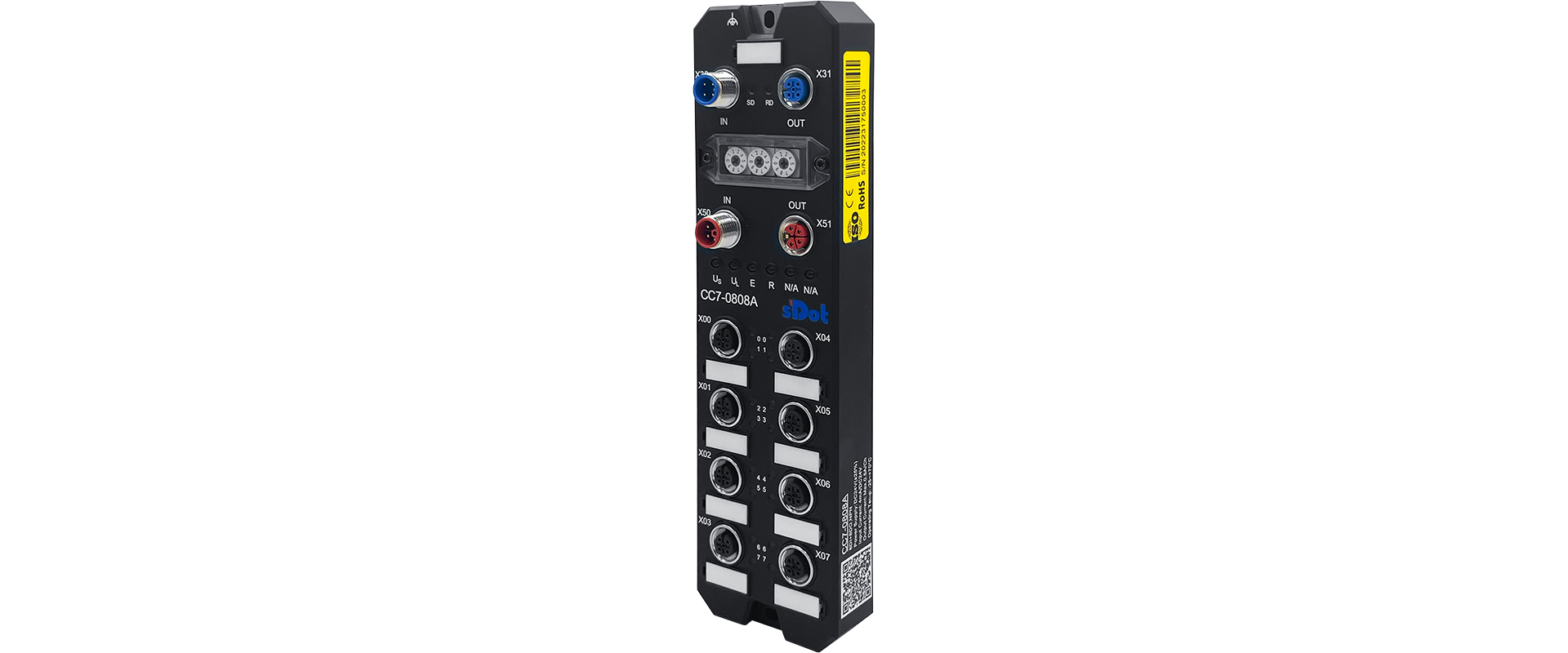

🔼 CC-Link Bus I/O:CC7-0808A

[Product Introduction]

Digital signal NPN/PNP types and multiple I/O point configurations are available, suitable for various application scenarios.

[Product Features]

IP67 protection rating, suitable for harsh industrial environments

Simple configuration, supporting mainstream CC-Link Master Station

Certified with CE certification and RoHS certification, certification available upon request

Communication rate up to 10M, cable length up to 100 m at maximum rate

Simple and fast wiring, standard cables provided, easy wiring

PART FOUR: Motion control modules

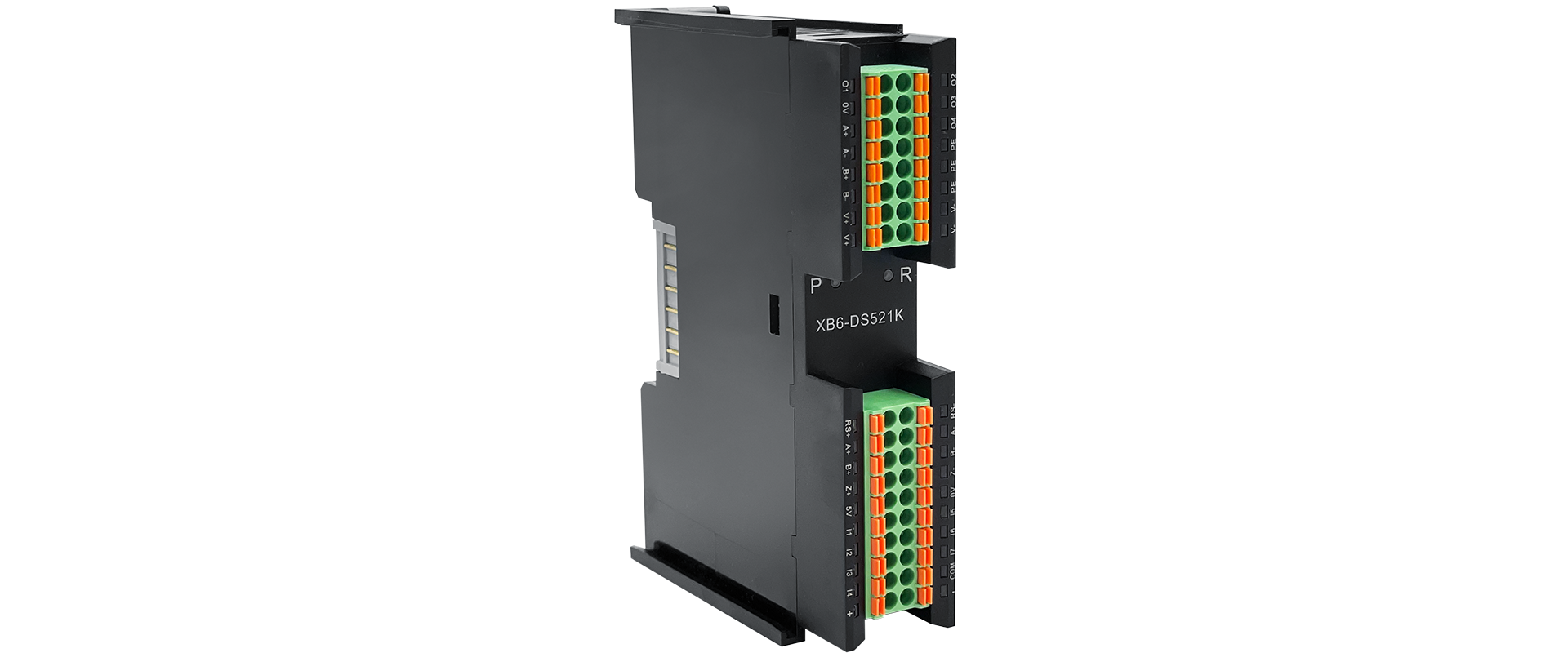

🔼Multi-protocol Slice single-axis Open-loop Stepper Driver:XB6-DS521K

[Product Introduction]

X-bus backplane bus, supports EtherCAT, PROFINET, CC-Link IE Field Basic and other bus protocols.

Built-in T-type acceleration/deceleration algorithm, multiple homing modes, supports PP (Position), PV (Speed), JOG (Jog), HM (Homing) motion modes.

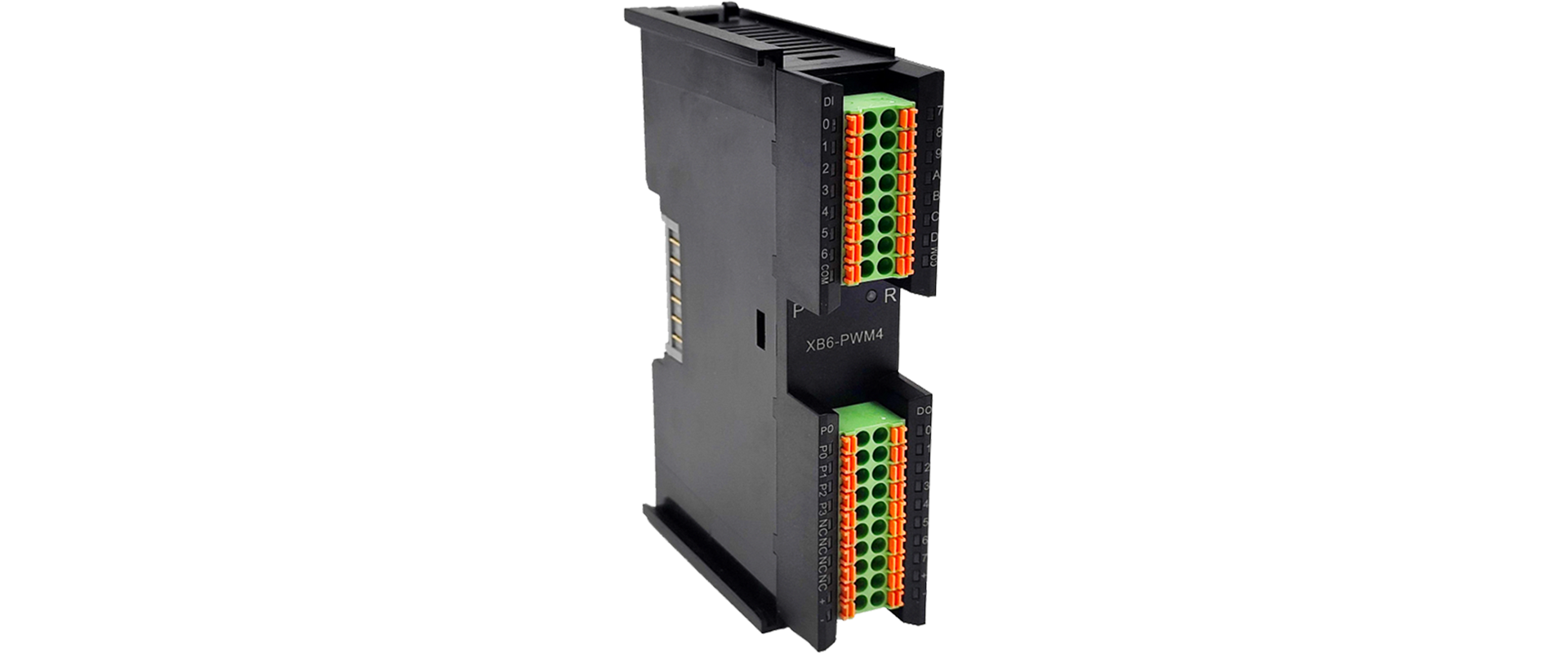

🔼Multi-protocol Slice PWM Output Module:XB6-PWM4

[Product Introduction]

X-bus backplane bus, supports EtherCAT, PROFINET bus protocols.

Built-in self-developed acceleration/deceleration algorithm, smooth transition of frequency and duty cycle; PWM drive capability up to 1 A; built-in channel-level synchronization function, one-click synchronization of frequency and duty cycle.

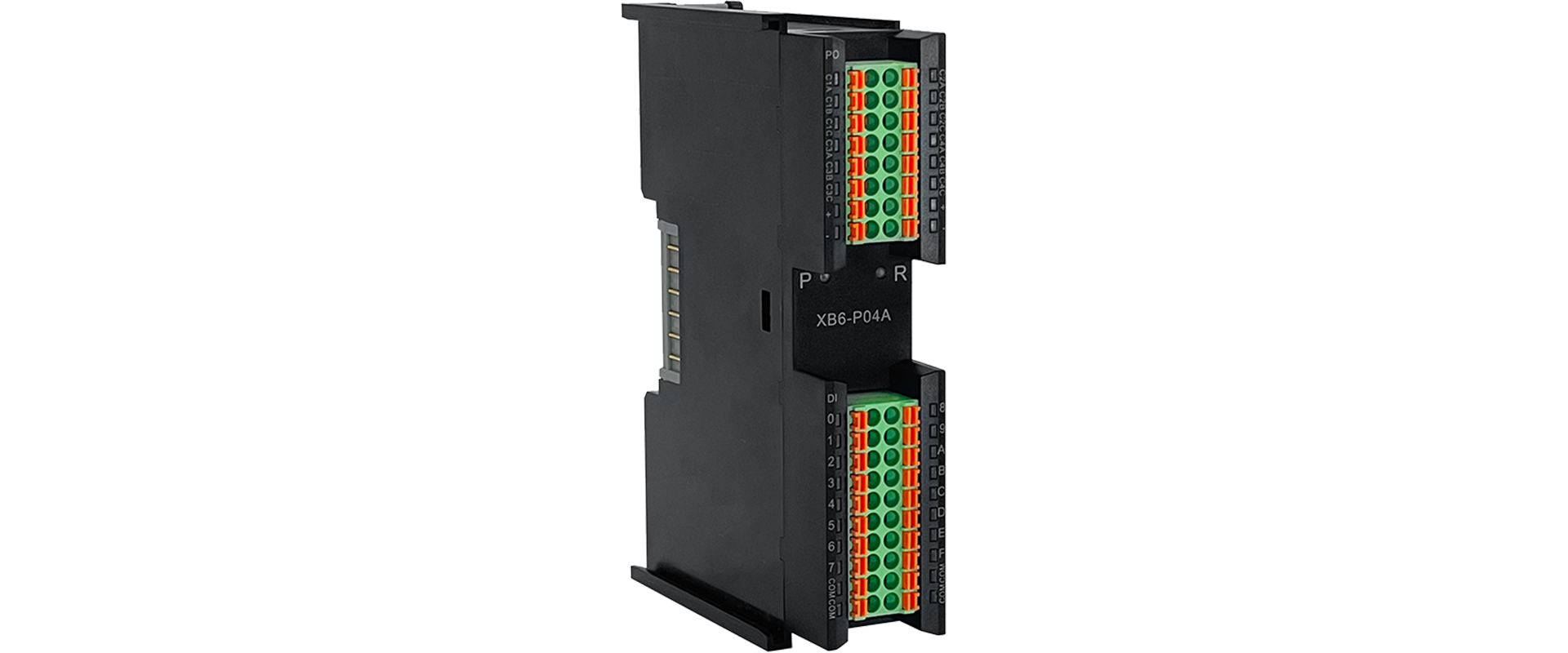

🔼Multi-protocol Slice pulse output module:XB6-P04A

[Product Introduction]

X-bus backplane bus, supports PROFINET, Ethernet/IP, EtherCAT and other bus protocols.

Built-in T-type acceleration/deceleration algorithm, multiple homing modes.

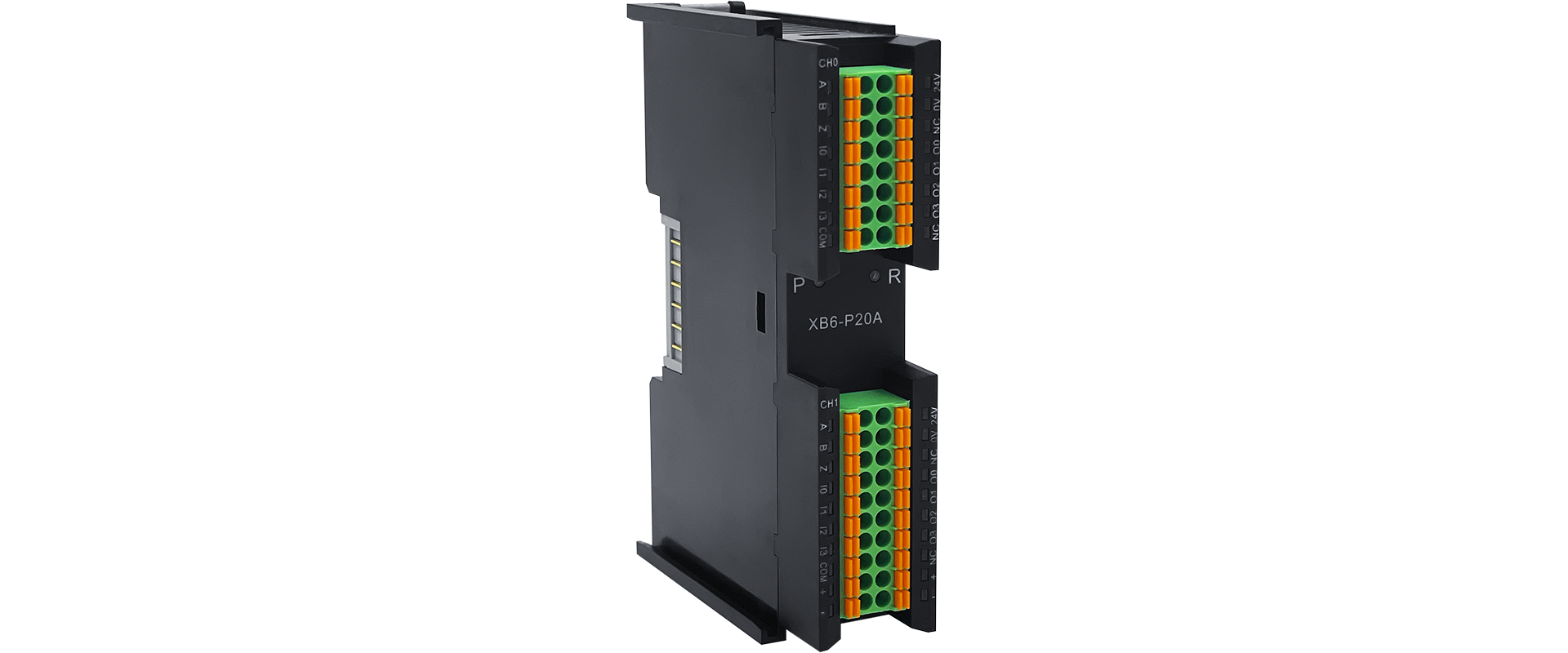

🔼Multi-protocol Slice Encoder Counter Module:XB6-P20A

[Product introduction]

X-bus backplane bus, supports EtherCAT and PROFINET bus protocols.

Supports AB quadrature, PUL+DIR, CW/CCW; supports Compare output; supports Probe latch.

PART FIVE: Protocol Gateway

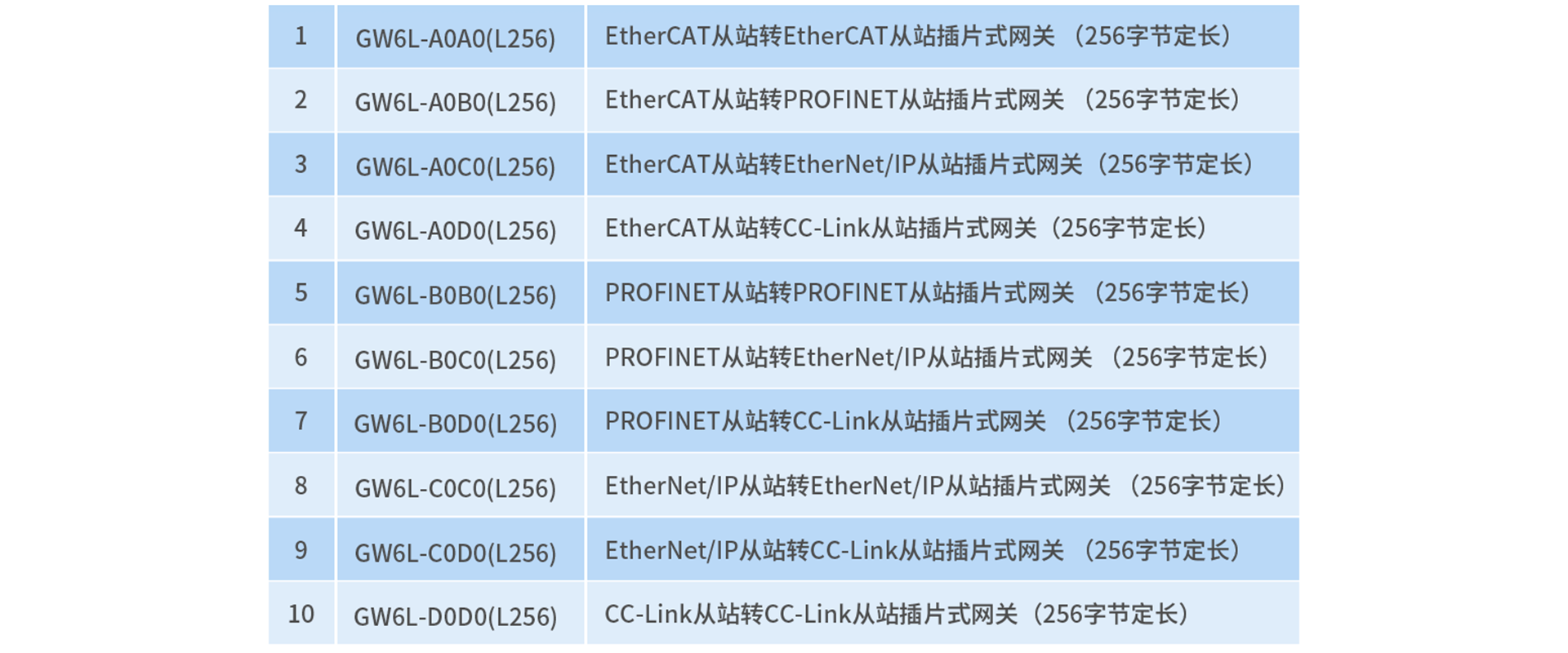

🔼 Robot X series protocol conversion gateway products

[Product Model]

[Product introduction]

Two protocol conversion modules can be freely combined and spliced to achieve conversion between two protocols

High conversion rate, with a maximum conversion speed of 1.5 ms between the two protocols

Configuration is convenient and simple

Strong master compatibility, supporting adaptation to various mainstream master platforms

PART SIX: EtherCAT Switch

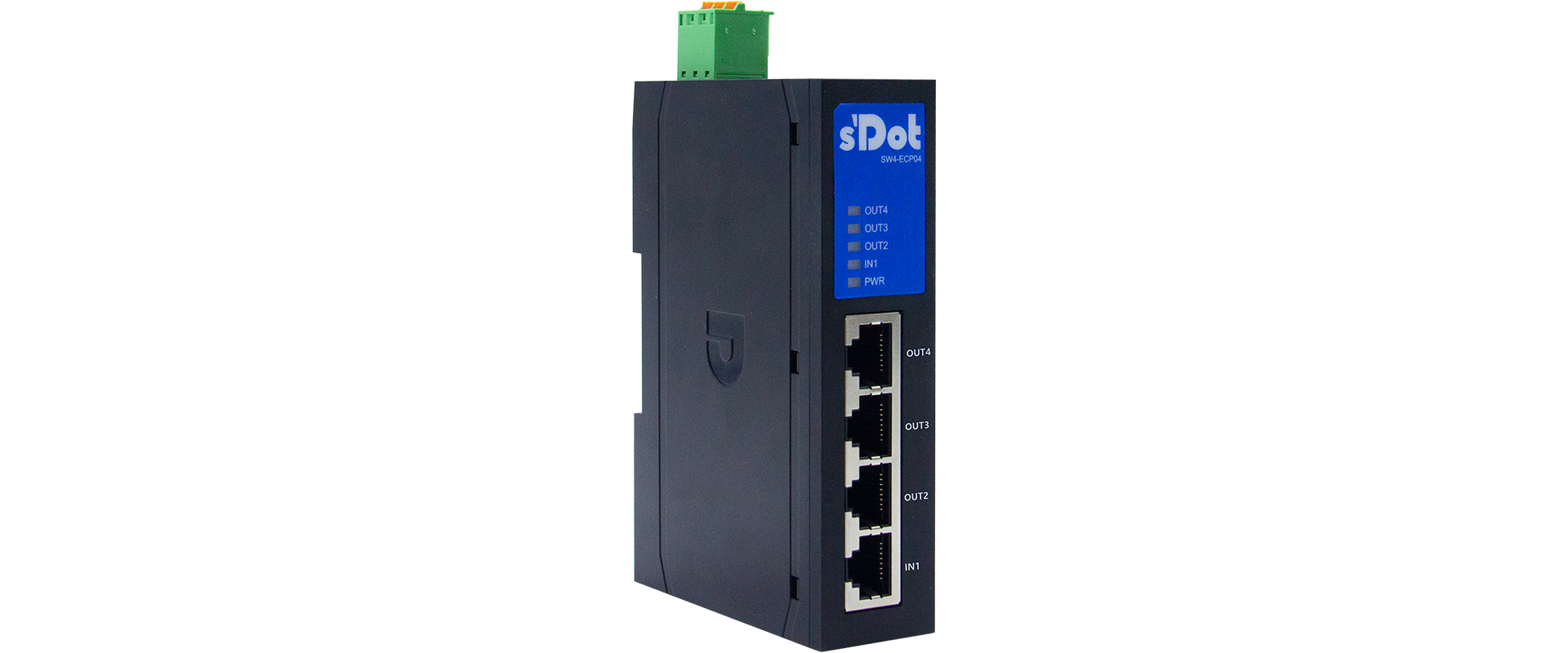

🔼 Vertical EtherCAT 4-port switch:SW4-ECP04

[Product features]

Four EtherCAT ports: RJ45 interface (1IN/3OUT), supports switch cascading function

Compact size: suitable for applications with limited space

Fast speed: based on high-performance EtherCAT ASIC communication chip for faster speed

Easy configuration: simple configuration, supports mainstream EtherCAT masters

Easy installation: DIN 35 mm standard rail mounting

Power supply system supports Reverse Polarity Protection and Short-circuit Protection

It can be flexibly combined into various topologies and can be widely applied in various EtherCAT network industrial systems.

10 M/100 M rate auto-adaptation avoids lag and delay, offering good adaptability.

Supports Hot Swap of network cables.

Resists Air Discharge of ±8 kV and Contact Discharge of ±4 kV.
