Cascading expansion, flexible configuration — Solidot IOL5 Series IO-Link Hub

Solidot IOL5 Series IO-Link Hub supports IO-Link communication and can connect to various IO-Link standard devices and standard discrete signals, enabling flexible signal acquisition and efficient control in industrial sites.

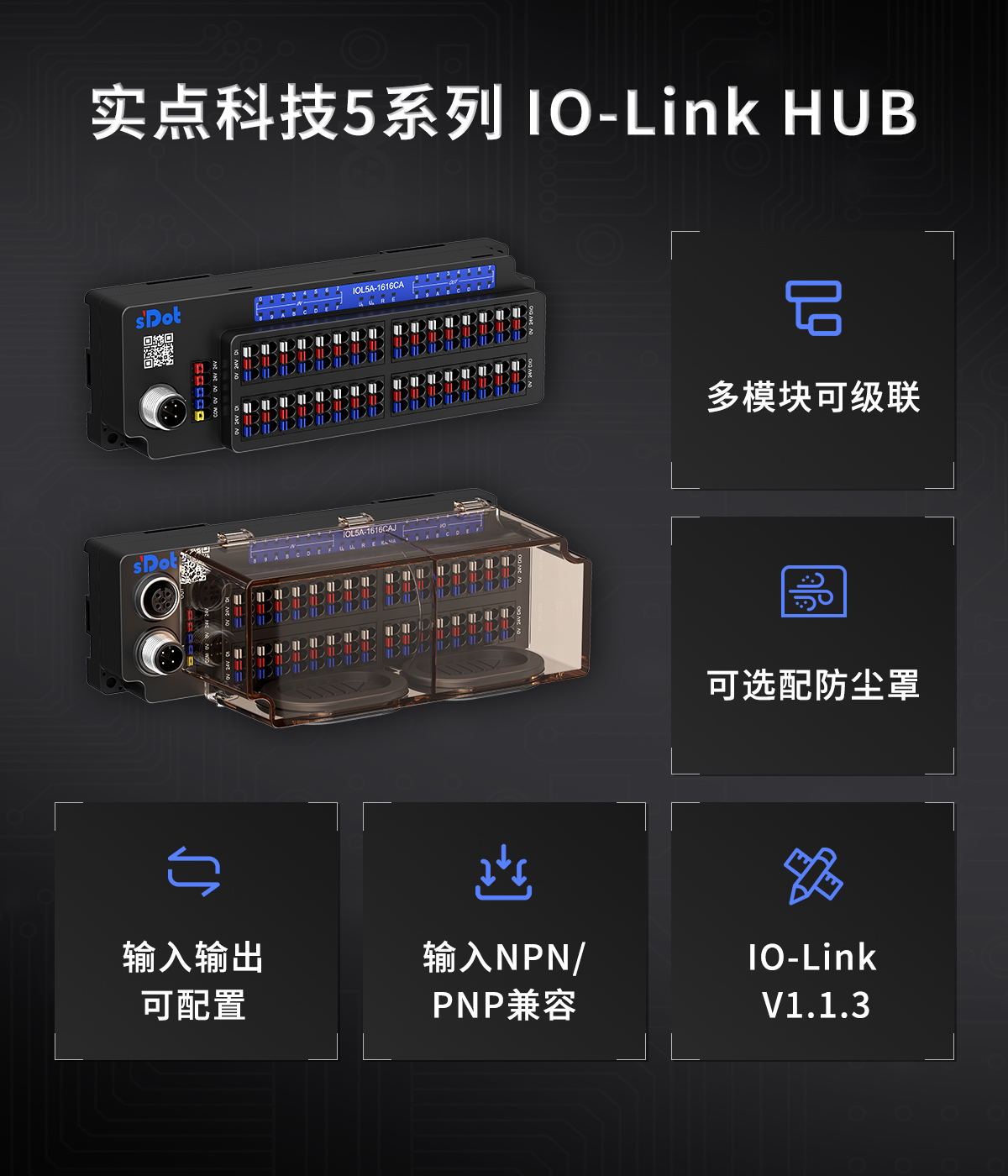

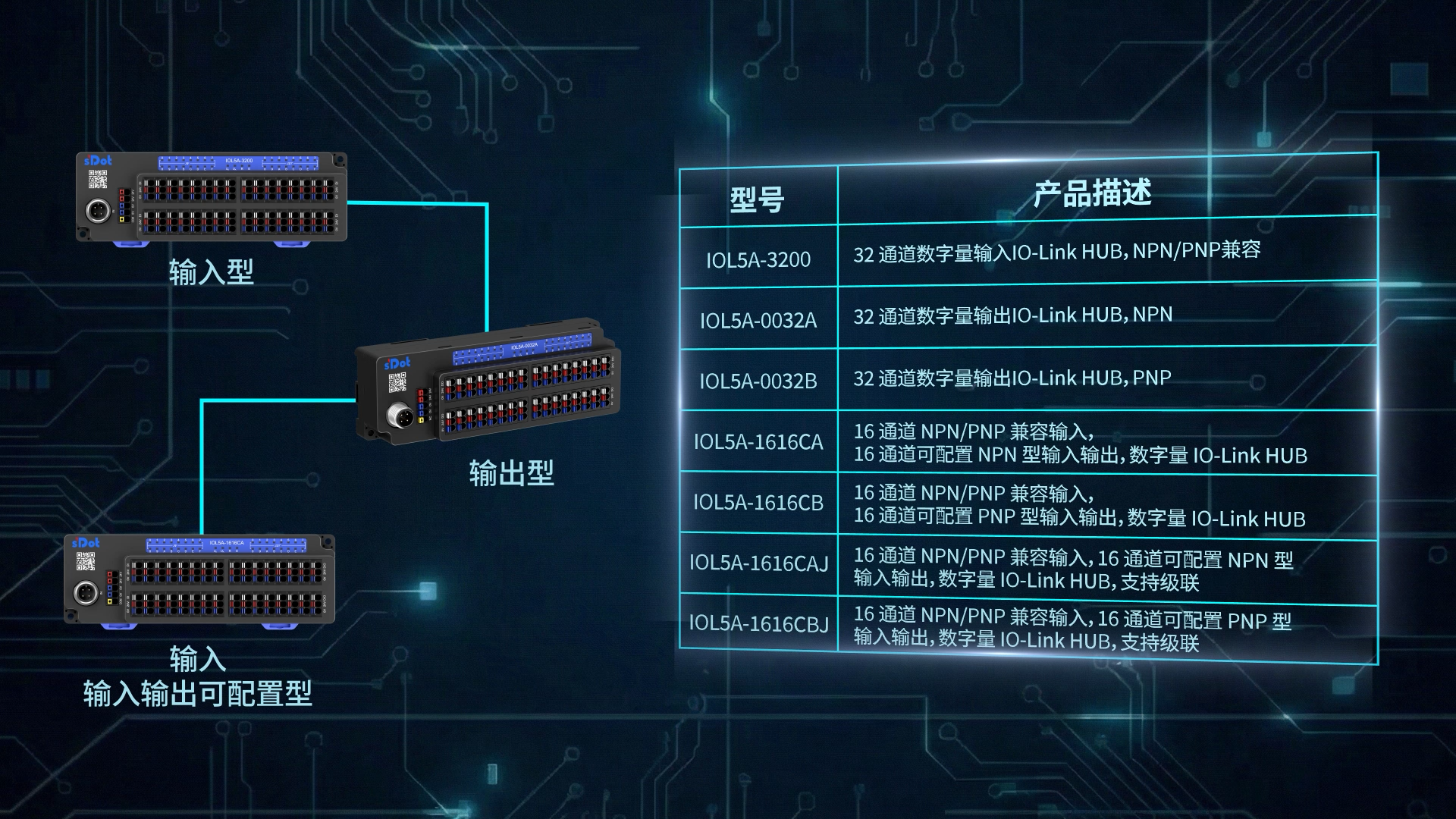

The IOL5 series covers three types of modules: input only, output only, and configurable input/output. It supports NPN/PNP compatible input and offers NPN or PNP output options, with a maximum of 32 channels of digital input or output.

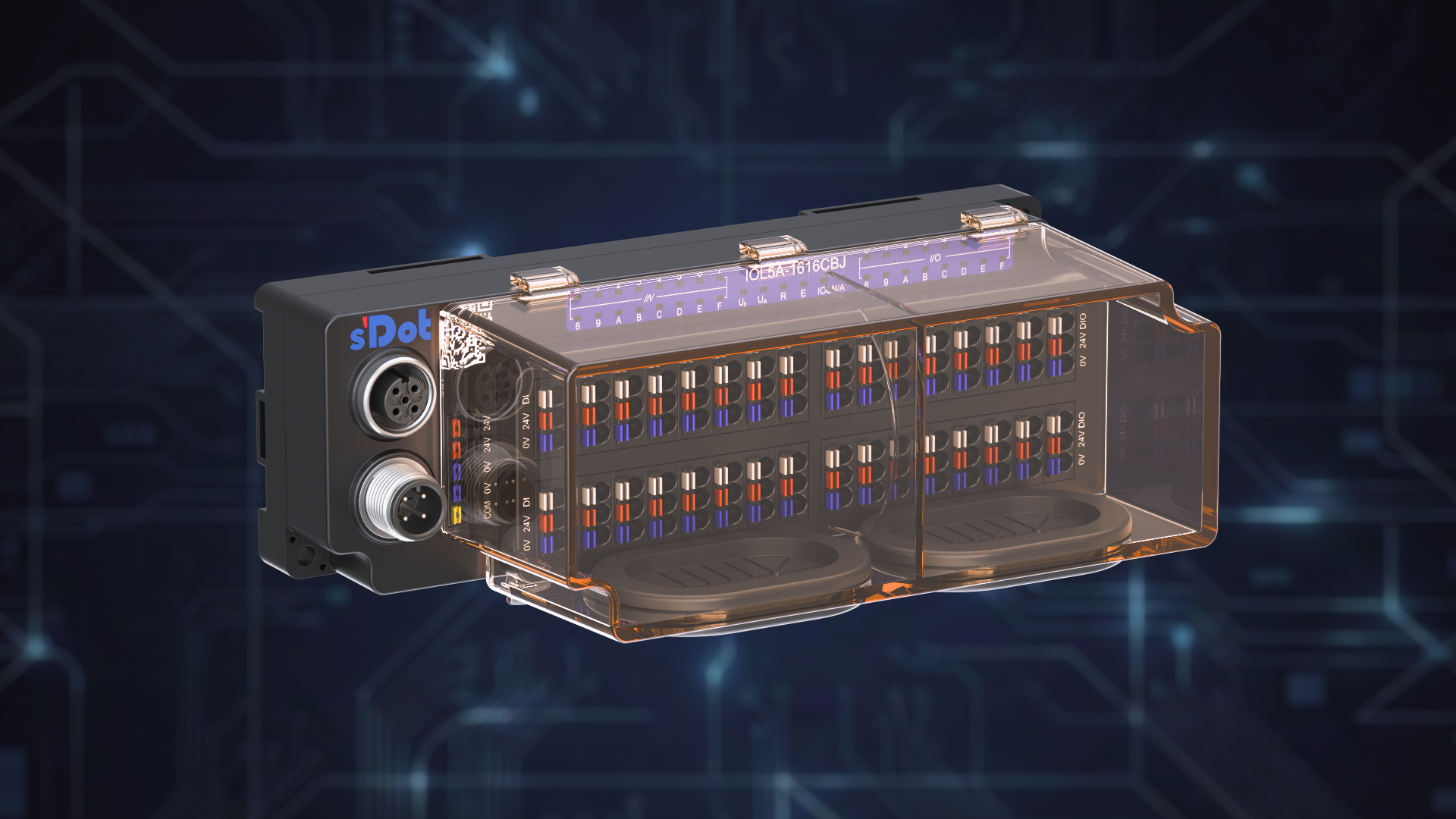

Optional dust cover is available to meet installation requirements in harsh industrial environments.

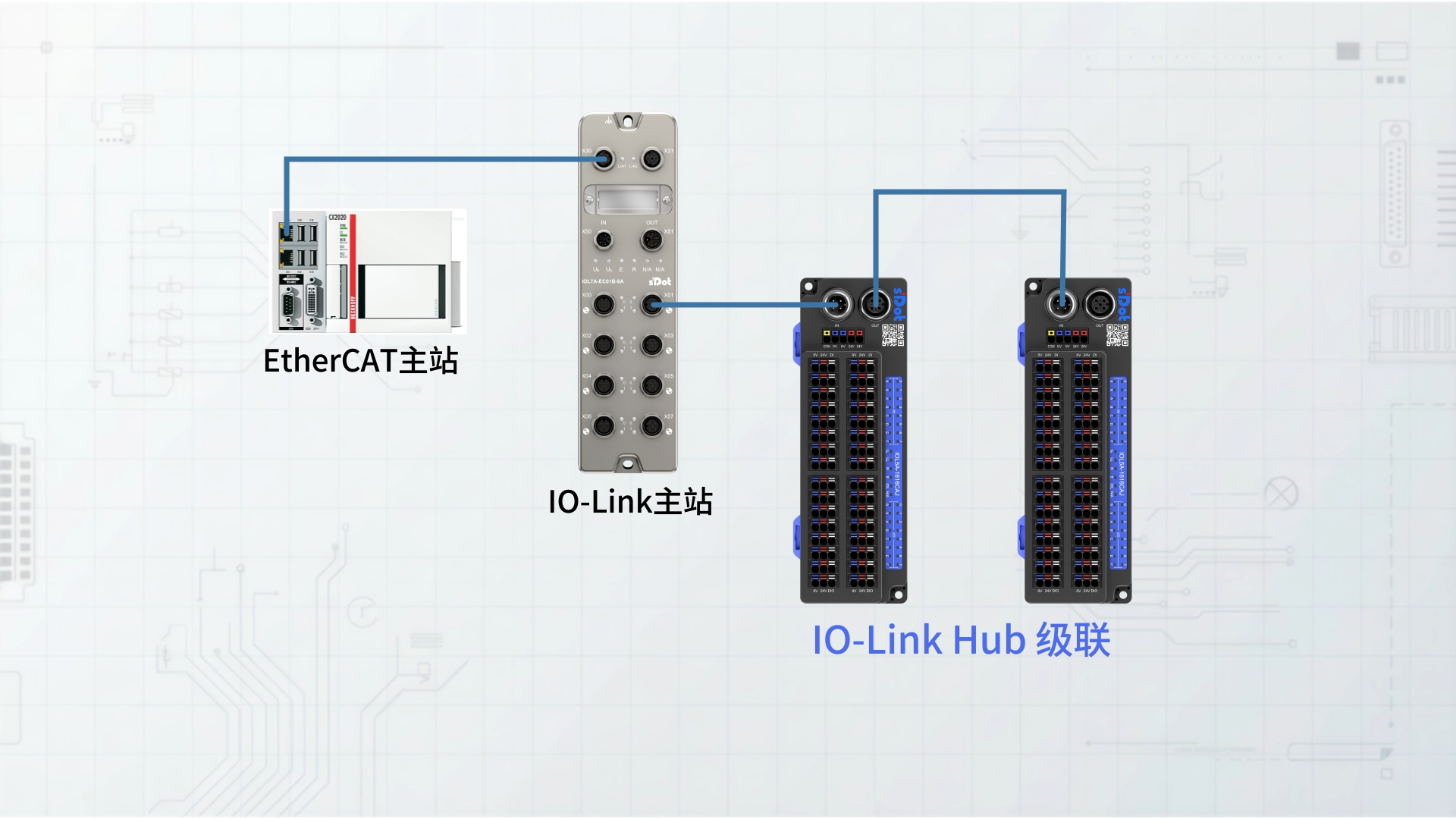

The IOL5A-1616CAJ and 1616CBJ models are equipped with IN/OUT dual interfaces, supporting cascading of multiple modules to help build a more flexible field network.

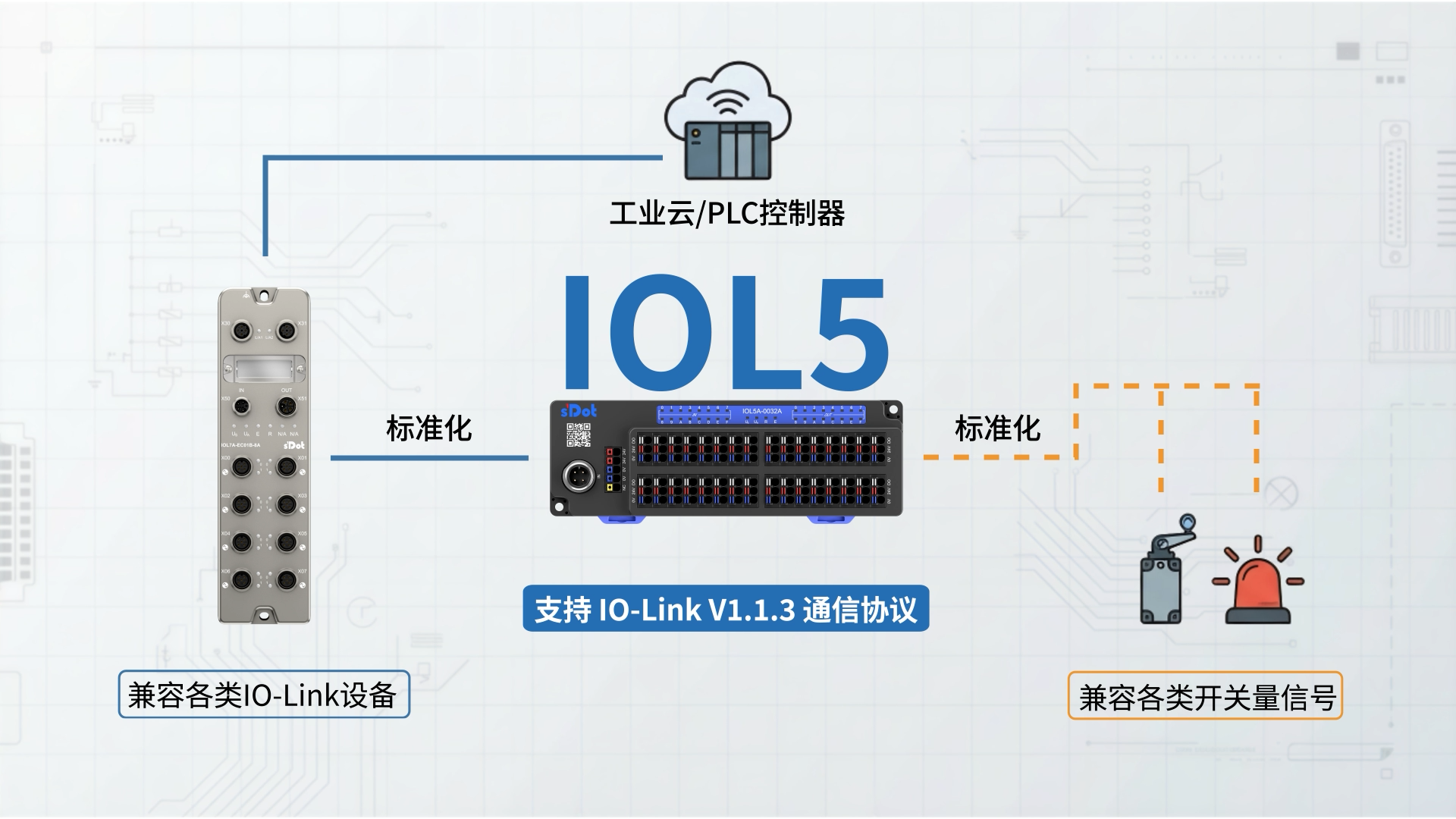

Standardized connection with IO-Link V1.1.3 communication protocol, fully compatible with various IO-Link devices and discrete signals.

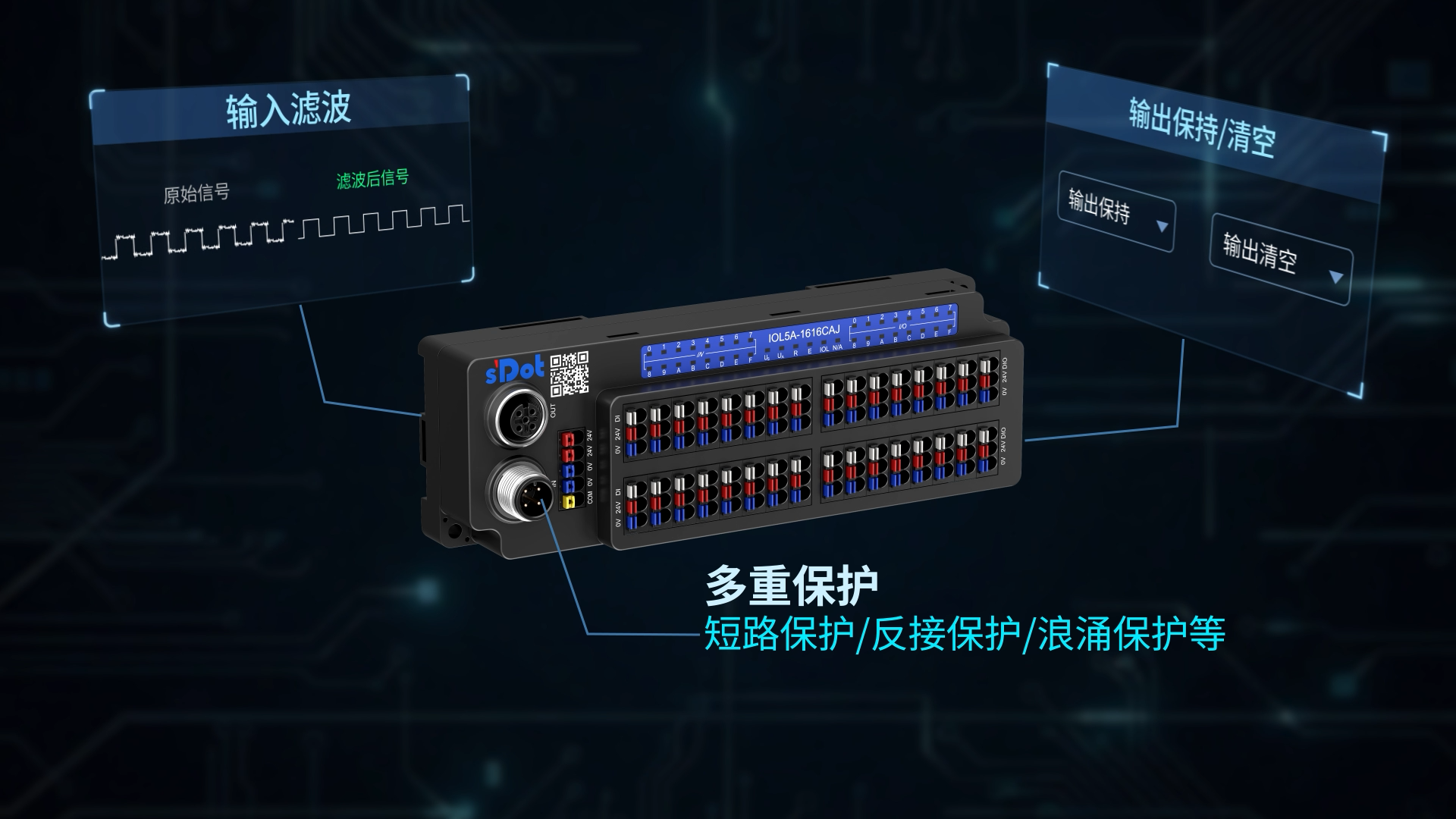

Stable and reliable, featuring short-circuit protection, reverse polarity protection, and surge protection. Supports input filtering and output hold/clear settings.

That concludes the introduction to the Solidot IOL5 Series IO-Link Hub. If you have any questions, please feel free to inquire. We will be happy to serve you!
