Introduction to Solidot XB6S Series Remote I/O Module: Modbus TCP Coupler XB6S-MT2002

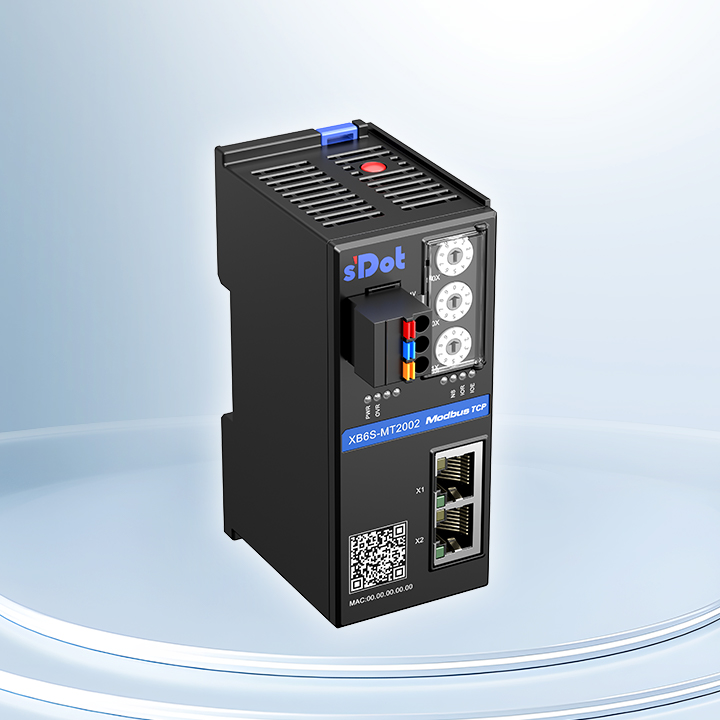

The XB6S-MT2002, a Modbus TCP protocol coupler for Solidot's XB6S Series Remote I/O modules, supports alarms, button reset, online upgrades, independent parameter configuration, and automatic reconnection. It enables real-time data exchange between XB6S I/O modules and controllers, compatible with mainstream Modbus TCP masters.

Core Features

1. Flexible Expansion

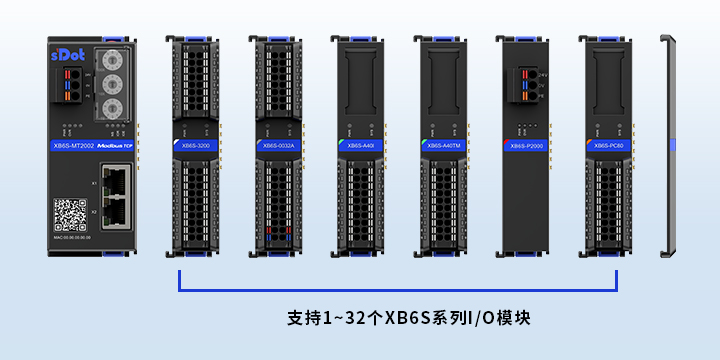

•Single XB6S-MT2002 supports up to 32 I/O modules for diverse control needs.

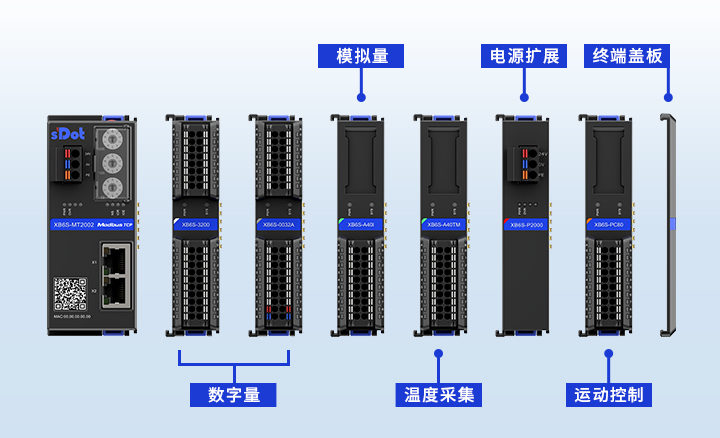

•Integrates digital/analog I/O, temperature acquisition, and motion control modules for multi-scenario applications.

2. High Reliability

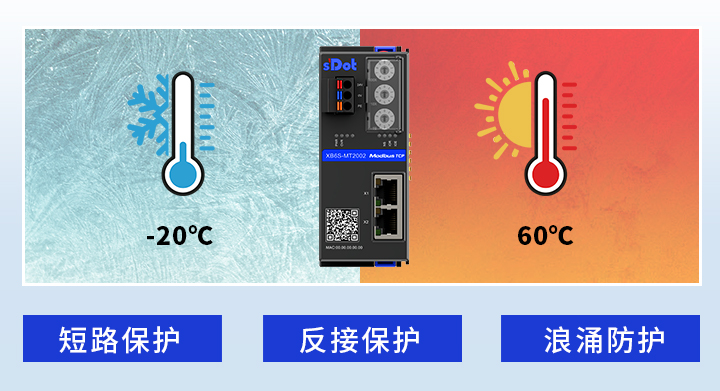

•Operating temperature: -20°C to +60°C.

•Built-in short-circuit/reverse-connection/surge protection.

3. Simplified Maintenance

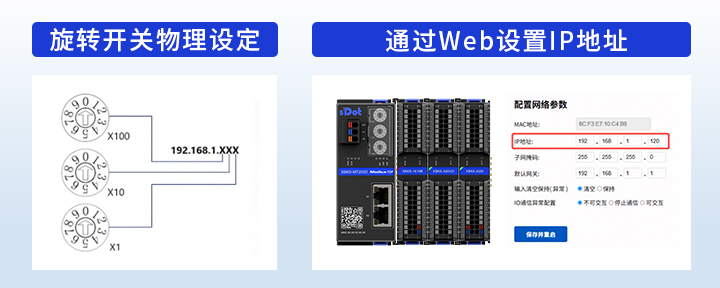

•Set IP (192.168.1.XXX) via rotary switch; remotely configure IP/subnet/gateway via web interface.

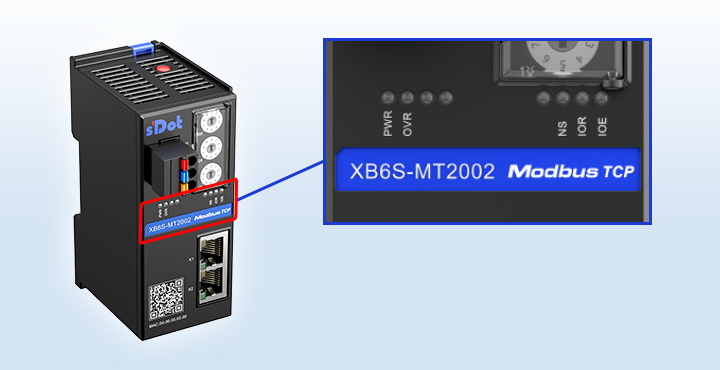

•Multi-LED indicators (PWR/OVR/NS/IOR/IOE) monitor power, network, and I/O status; Web dashboard visualizes module configuration and channel anomalies.

•Supports firmware OTA updates and fault code diagnostics; one-button factory reset.
