Product Introduction: Solidot Remote I/O XB6S Series Serial Communication Modules

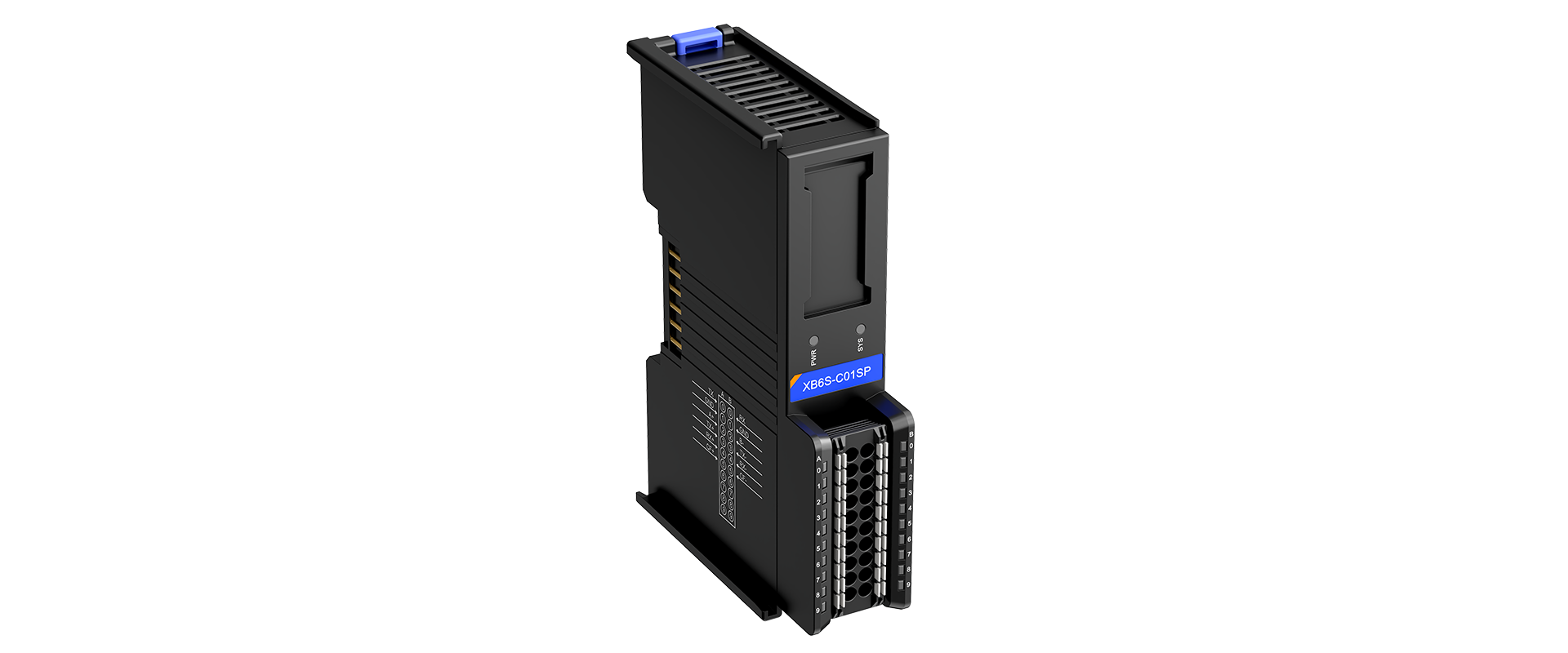

The XB6S-C01SP is a 1-channel serial communication module in the XB6S series, compatible with XB6S couplers. Compact in size and simple in data exchange processing, it meets serial communication needs across diverse application scenarios.

√ Supports RS485/RS422/RS232 communication interfaces
√ Supports multiple communication modes: Modbus RTU Master/Slave, Modbus ASCII Master/Slave, and Freeport

1. Application Examples

Building Automation Control System
In building automation scenarios, the XB6S-C01SP connects to HVAC units, lighting systems, and other devices via its RS422 interface. It collects real-time environmental parameters such as indoor temperature, humidity, and light intensity, and controls equipment operations based on preset logic to enable energy-efficient smart building management.

Agricultural Greenhouse Environment Monitoring
In agricultural greenhouses, the XB6S-C01SP communicates with a central controller via its RS232 interface. The module receives data from humidity and light sensors and forwards it to a cloud management platform. Its built-in byte-swapping function optimizes data parsing efficiency, while its wide operating temperature range (-20°C to +60°C) ensures reliability in extreme environments, supporting precision agricultural control.

Real-Time Communication in Logistics Sorting Systems
In parcel sorting lines, the XB6S-C01SP operates in Freeport mode and communicates with barcode scanners and sorting robotic arms via RS422. The module supports custom frame formats to transmit package barcode data to controllers in real time. Innovative channel indicators (e.g., green blinking for data transmission/reception) simplify link status diagnostics for maintenance personnel.

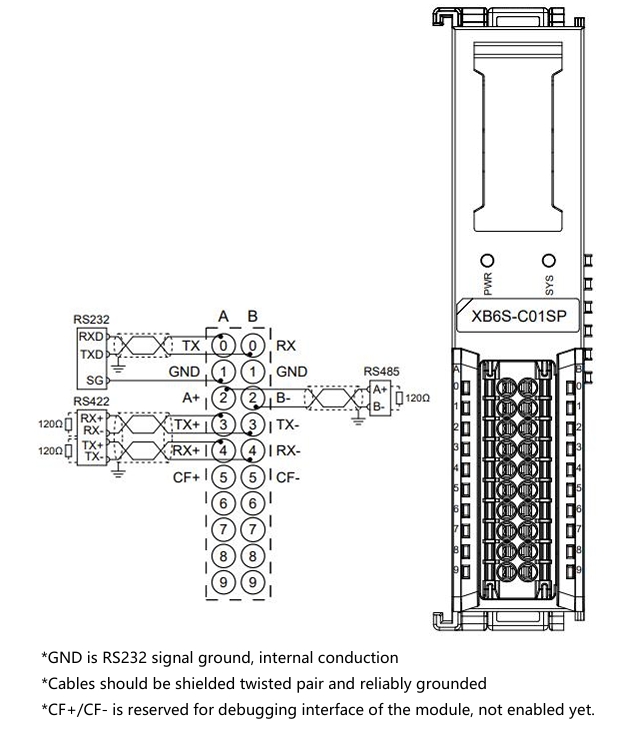

2. Wiring Diagram

↑ XB6S-C01SP Wiring Diagram

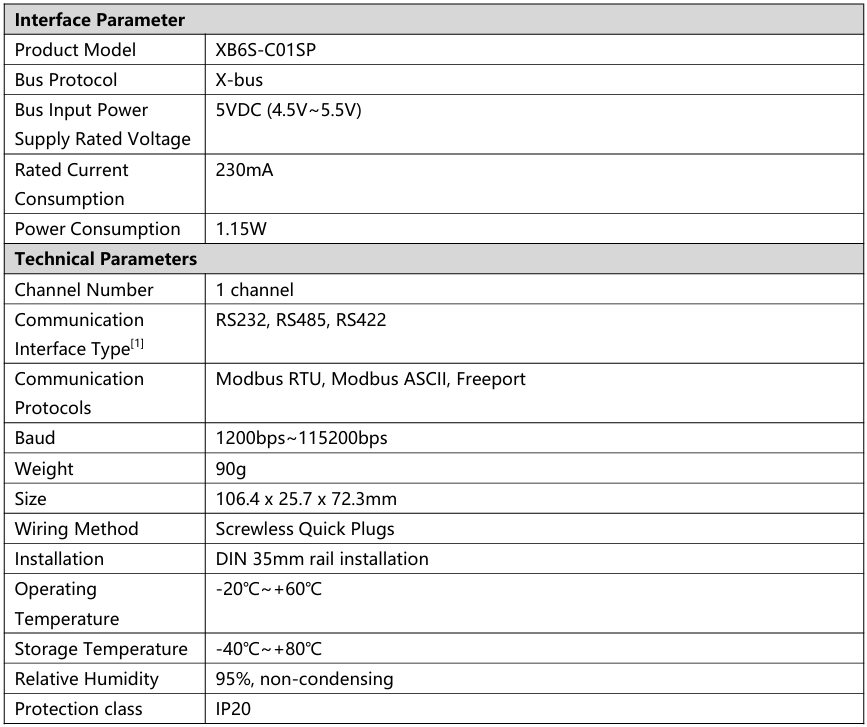

3. Parameter Overview

Note [1]: Only one interface (RS232, RS485, or RS422) can be used at a time.

This concludes the product introduction of Solidot’s XB6S series serial communication module, the XB6S-C01SP. Thank you for your attention!
